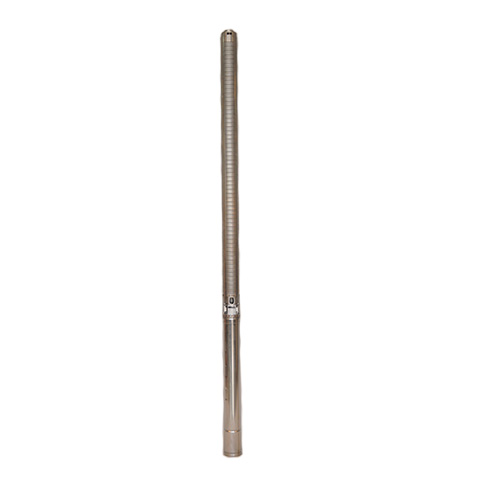

DAYLIFF DS submersible pumps are designed specifically for borehole supply applications. They are of multistage centrifugal impeller design and all parts are made from stainless steel with water lubricated rubber bearings. A submersible motor is fitted beneath the pump and suction is effected through a strainer between the pump and motor.


MOTOR
The pump is coupled to a sealed liquid cooled oil filled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single phase motors are supplied complete with purpose designed control boxes, while three phase motors require a remote starter. A DAYLIFF Electronic Pump Controller is recommended for comprehensive pump control including wireless low level, motor overload and irregular power supply protection.



Enclosure Class: IP68

Insulation Class: F

Speed: 2900rpm



Model	Motor		Voltage(V)	Current (A)	Istart/I	DN(")	Dimensions		Weight (kg)
							A	D
	kW	HP
DS 3/9	0.55	0.75	1x240 V	3.7	1	1¼	410	717	10
DS 3/12	0.75	1		4.7	4		517	1861	12
DS 3/18	1.1	1.5		6.2	4		568	920	14
DS 3/25	1.5	2		8	4		673	1065	17
DS 3/33	2.2	3		15	4		1047	1564	27
DS 3/45	3	4	3x415 V	8	7		1341	1923	32
DS 3/60	4	5.5		10	7		1604	2261	38
