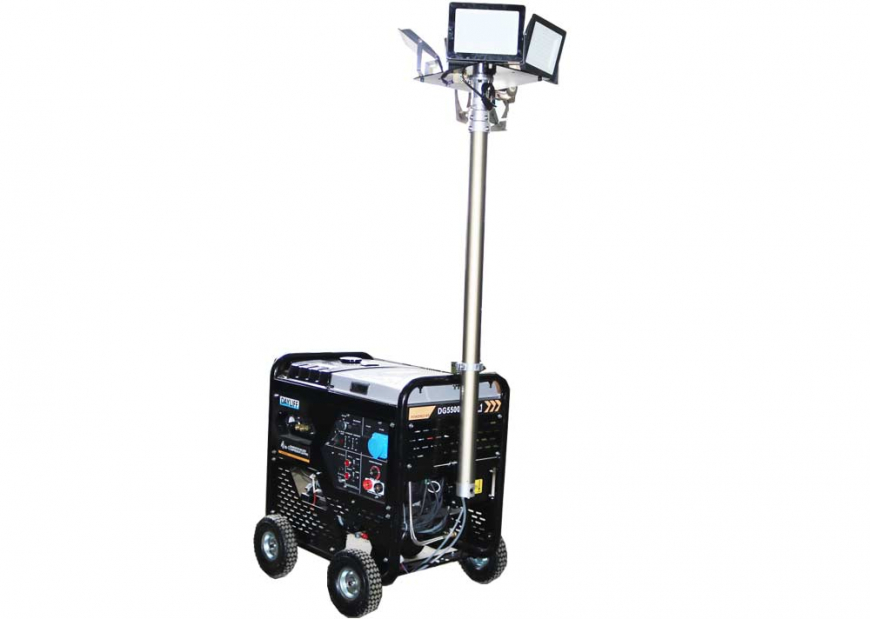

Dayliff DG MULTI-4 is a compact and versatile Power Pack that combines a Generator, DC Welder, Air Compressor, and Lighting Tower all powered by a petrol engine with the ability to operate several outputs together provided the total load is within the power availability. It is the ideal solution for contractor, workshop, and maintenance requirements, especially in mobile applications where there is no easily available mains power. Key features include:-

  • Compact frame-mounted design with 25cm wheels for mobility
  • The integral control panel includes an AC output Multimeter showing Volts, Frequency and Hours run, AC and DC fuse-less breakers, Oil alert indicator, Welding Adjuster, Air pressure gauges, and Air pressure regulator.
  • Robust and powerful 4-stroke OHV petrol engines with oil alert feature of a remote control
  • Large fuel tank for extended operation
  • Efficient 5 kVA Generator with twin AC and single DC outlets
  • High capacity Air Compressor with two outlets that is ideal for pneumatic tools, spray painting, etc
  • High output DC Welder suitable for welding rods up to 5mm size supplied complete with 4m Welding Cable with Clamp and Holder
  • Powerful LED light units mounted on a collapsible pneumatically powered tower that extends to 4.5 meter height with 360° illumination

The Dayliff DG MULTI 4 Power Pack is a high specification, high quality for all workshop and site applications where various power sources are required and is a most effective and economical alternative to separate power units.

Engine Model GK420E No Load Voltage, V 75 Capacity 2x10
Rated Power 10 operating Voltage, V 22-28 Stage 1
Displacement, cc 419 Output Current, A 50-180 Motor Size, kW 1.35
Fuel Tank Capacity, L 32 Max Arching Current, A 200 Airflow, I/min 100
Operating Period 100% Load, hrs 8 Welding Rod, mm 1.6-5 Operating Pressure, Bar 6-8
Generators Lighting Tower Dimensions & Weights
Maximum/Rated Power, kVA 5.5/5 Lamp Specification, Watts LED4x100 Dimensions, mm 851x583x780
Voltage, V 240, 50Hz Lift Heights, m 1.8-4.5 Weight, Kg 168
