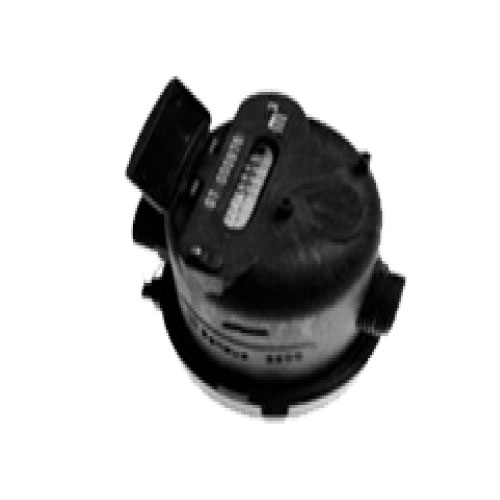

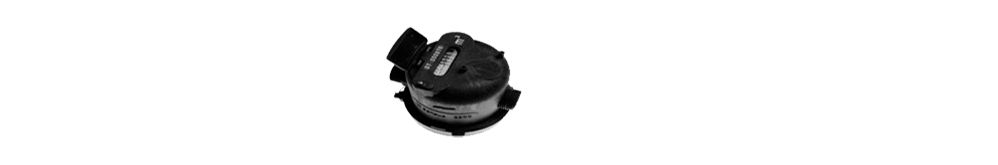

220C
An ultra light and easy to handle piston type meter made from a super strong composite body that increases installation security . The tamper proof design assures accurate reading of water consumed and is resistant to water hammer
PUMP DATA
MODEL |
220C |
Nominal Size(mm) |
15 |
Rated Flow(m3/hr) |
2.5 |
Max.Flow(m3/hr) |
3 |
Min. Flow(l/hr) |
15 |
Pressure Rating(bar) |
16 |
Max. Operating Temp (oC) |
40 |
Max. Pipe Size |
1” |
Pressure Loss at Rated Flow(bar) |
0.18 |
Pressure Loss at Max. Flow(bar) |
0.6 |

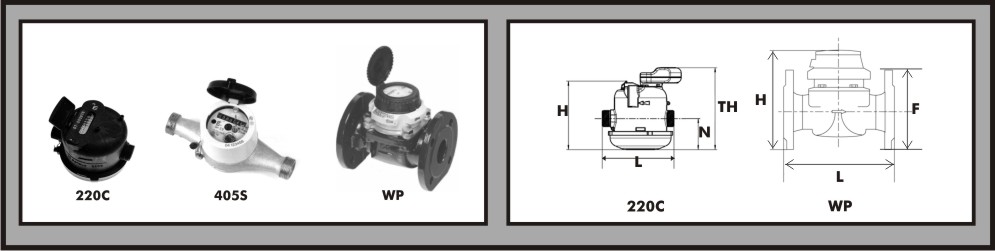

MODEL |
220C |
Nominal Size(mm) |
15 |
Meter Thread(D1) |
0.75’’BSP |
Meter Thread(D2)* |
0.5’’ BSP |
Flange Size(F) |
N/A |
Length (L) |
115 |
Height(H) |
110 |
Width |
105 |
Weight(kgs) |
0.5 |
*Threaded meters are supplied with union connectors
