405S

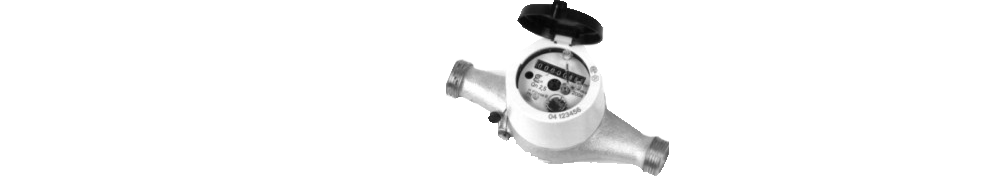

A heavy-duty meter designed for water supply metering by utilities and other water providers
who demand reliability , accuracy and consistency . The range is of dry dial multijet type with a protected magnetic transmission between the measuring element and the output display . The display is of 8-digit configuration reading to 1 litre and incorporates a rotating indicator disc to show the passage of water .
Special features to ensure reliability include a tubular pre-strainer , specially designed injection box for easy particle passage and sealed dry totalizer . Meter materials includes a brass body and precision moulded plastic metering and totalizer components with plastic totalizer casings for the 15 & 20 sizes and brass for the 30 & 40 sizes.
PUMP DATA
MODEL |
405S |
|||
Nominal Size(mm) |
15 |
20 |
30 |
40 |
Rated Flow(m3/hr) |
1.5 |
2.5 |
6 |
10 |
Max.Flow(m3/hr) |
3 |
5 |
12 |
20 |
Min. Flow(l/hr) |
30 |
50 |
120 |
200 |
Pressure Rating(bar) |
16 |
16 |
16 |
16 |
Max. Operating Temp (oC) |
40 |
40 |
40 |
40 |
Max Pipe Size |
1’’ |
1.25’’ |
1.5’’ |
2’’ |
Pressure Loss at Rated flow (Bar) |
0.18 |
0.19 |
0.24 |
0.22 |
Pressure Loss at Max flow (Bar) |
0.6 |
0.8 |
0.85 |
0.6 |
MODEL |
405S |
|||
Nominal Size(mm) |
15 |
20 |
30 |
40 |
Meter Thread(D1) |
0.75’’ BSP |
1’’ BSP |
1.5’’ BSP |
2’’ BSP |
Meter Thread(D2)* |
0.5’’ BSP |
0.75’’ BSP |
1.25’’ BSP |
1.5’’ BSP |
Flange Size(F) |
N/A |
N/A |
N/A |
N/A |
Length (L) |
170 |
190 |
260 |
300 |
Height(H) |
104 |
104 |
142 |
160 |
Width |
82 |
82 |
102 |
136 |
Weight(kgs) |
0.9 |
1.1 |
2.3 |
4.3 |
*Threaded meters are supplied with union connectors
