WP Range

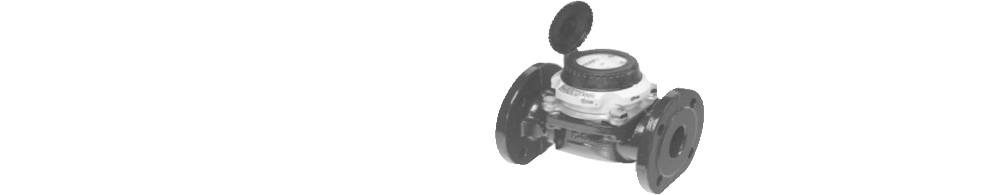

A specially designed heavy-duty meter for bulk flow applications where reliability , accuracy and long life are demanded. The meter is of woltman type with protected magnetic transmission, IP68 copper/glass register and 3 the output display has a 6-digit m readout with needle indicators for flow to 1litre. The meter body is constructed of heavy duty cast-iron with flanged connections and the measuring element and rotor of
engineering plastic. All WP meters are pre-equipped for remote reading and data logging applications (flow rate, pressure, etc).
PUMP DATA
MODEL |
WP |
||
Nominal Size(mm) |
50 |
80 |
100 |
Rated Flow(m3/hr) |
15 |
40 |
60 |
Max.Flow(m3/hr) |
90 |
200 |
300 |
Min. Flow(l/hr) |
300 |
500 |
800 |
Pressure Rating(bar) |
16 |
16 |
16 |
Max. Operating Temp (oC) |
50 |
50 |
50 |
Max Pipe Size |
2.5’’ |
4’’ |
6’’ |
Pressure Loss at Rated flow(Bar) |
0.01 |
0.02 |
0.03 |
Pressure Loss at Max flow (Bar) |
0.2 |
0.3 |
0.5 |

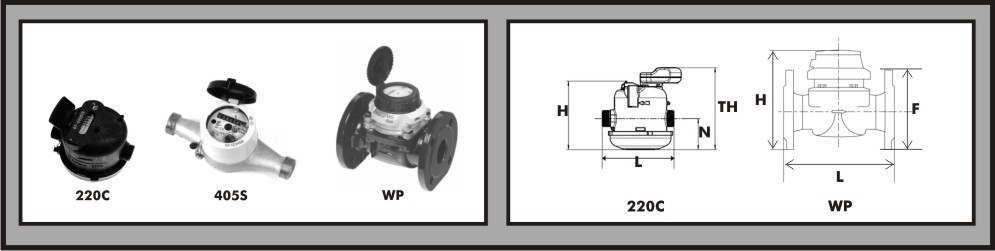

MODEL |
WP |
||
Nominal Size(mm) |
50 |
80 |
100 |
Meter Thread(D1) |
N/A |
N/A |
N/A |
Meter Thread(D2)* |
N/A |
N/A |
N/A |
Flange Size(F) |
160 |
200 |
250 |
Length (L) |
200 |
200 |
250 |
Height(H) |
193 |
205 |
255 |
Width |
160 |
200 |
250 |
Weight(kgs) |
7.7 |
10.6 |
15 |
*Threaded meters are supplied with union connectors
