Product Overview

Product Details

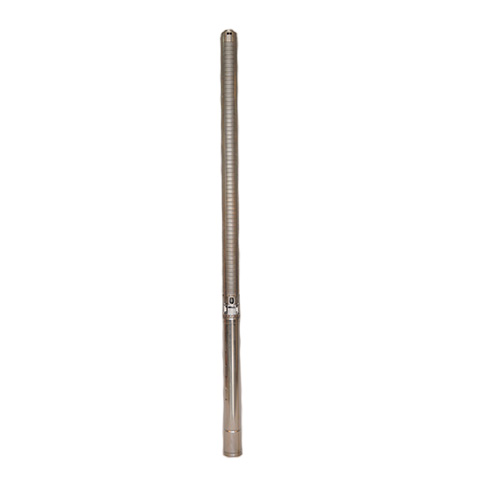

DAYLIFF DS submersible pumps are designed specifically for borehole supply applications. They are of multistage centrifugal impeller design and all parts are made from stainless steel with water lubricated rubber bearings. A submersible motor is fitted beneath the pump and suction is effected through a strainer between the pump and motor.

MOTOR
The pump is coupled to a sealed liquid cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single phase motors are supplied complete with purpose designed control boxes, while three phase motors require a remote starter. A DAYLIFF Electronic Pump Controller is recommended for comprehensive pump control including wireless low level, motor overload and irregular power supply protection.

Enclosure Class: IP68
Insulation Class: F
Speed: 2900rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres.
Max Liquid Temperature: +40°C.
Max Water Depth: 300m-6",200m-4"
Minimum Borehole Diameter: 110mm

PUMP DATA

Model Motor Full Load Current (A) Start Current (A) Dimensions (mm) Weight (kg)
C B A
kW HP 1x240 V 3x415 V 1x240 V 3x415 V 1x240 V 3x415 V 1x240 V 3x415 V
DS 5/8 0.75 1 6.3   20   335 375   710   12
DS 5/12 1.1 1.5 8.5 3.6 25 16 419 395 375 814 794 13
DS 5/17 1.5 2 10.8 4.6 35 20 524 440 395 964 919 16
DS 5/25 2.2 3 14 6.3 45 33 692 558 440 1250 1132 22
DS 5/33 3 4 - 7.9 - 45 868 - 558 - 1426 27
DS 5/44 4 5.5 - 10.2 - 55 1099 - 614 - 1713 35
DS 5/60 5.5 7.5 - 13.1 - 70 1460 - 684 - 2144 60



Read More Show Less

  • DS 5/8
  • DS 5/12
  • DS 5/17
  • DS 5/25
  • DS 5/33
  • DS 5/44
  • DS 5/60
  • DS5/75
Results 1 - 8 of 8
