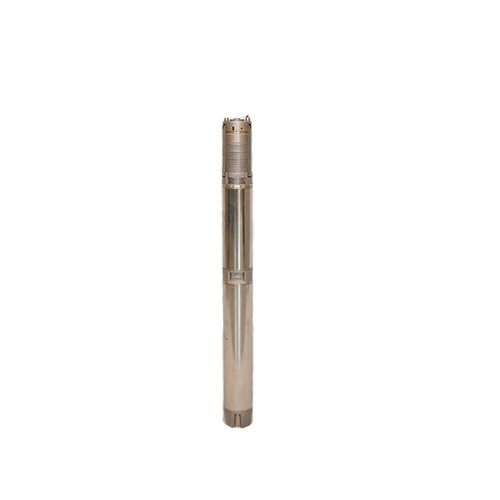

The pump comprises three components; the pump end made of AISI 304 stainless steel components specially designed for high speed operation, the motor featuring an encapsulated resin filled stator designed for high thermal conductivity and the inverter module featuring a resin encapsulated solid state electronic circuit board, this compact unit giving exceptional performance and high reliability.
The control module receives the pressure signal from the pressure transducers and varies pump speed to maintain a constant set pressure regardless of water demand. In addition to the constant pressure control, other control modes are available as follows:-
Pumps are supplied as complete kits ready for installation including the pump unit, programmable surface control module, cable joint and pressure transducer. No other installation components are required other than a mains isolator which results in reduced installation cost.
OPERATING CONDITIONS
Max. working pressure: 15 bar Max. Temperature: 35°C Enclosure class: IP55
Insulation class: B Max. speed: 6350 rpm
PUMP DATA
Model |
Voltage(V) |
kW |
HP |
Curent(A) |
Length(mm) |
Pump(Outlet”) |
Max Pump Diameter |
Weight(kgs) |
4HS 02/04 |
1 X 240 |
1.1 |
1.5 |
7.1 |
936 |
1.25 |
101 |
19.5 |
4HS O4/05 |
1 X 240 |
2.0 |
2.7 |
12 |
894 |
1.25 |
101 |
21.5 |
4HS 06/04 |
1 X 240 |
2.2 |
3.0 |
14 |
981 |
1.5 |
101 |
21.4 |
