Product Details

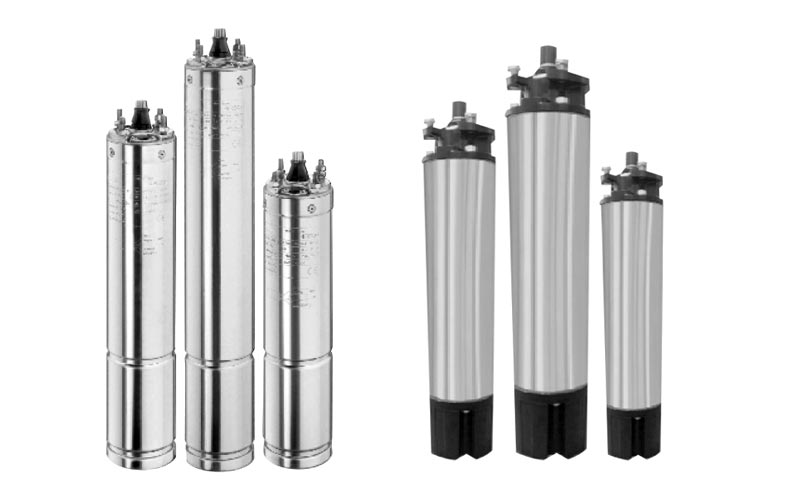

DAYLIFF DSM submersible motors are specifically designed to give exceptional reliability and efficiency in all borehole pumping applications.
Features
- 4" oil filled type motor with FDA approved colourless oil
- 6" canned type motor with resin filled stator for extended motor life
- Largely stainless steel AISI 304 construction with cast iron top and bottom bearings
- Water lubricated thrust and radial bearings
- Reinforced netted Nylon diaphragm for internal motor pressure compensation
- Thermal overload for motor protection
- Standard NEMA flanges for use with all types of pumps
- Protection: IP68
- Insulation Class: F
- Voltage: 1x220V/240V, 50Hz / 3x380V/415V, 50Hz
Operating Parameters
Max Voltage Variation: ±10%
Max Starts/Hr: 20
Max Water Temperature: 350C
Min Water Pass Flow Rate: 0.2m/sec
Max Immersion Depth: 200m-4" and 300m-6"
Installation: Vertical/horizontal with a tilt angle > 50
Motor Data
Single Phase
Power |
In (A) |
Istart (A) |
Efficiency (%) |
PF - Cos |
Nm - RPM |
Thrust Load - N |
Capacity(uF) |
Tail Cable |
H(mm) |
Weight(Kg) |
kW |
HP |
mm2 |
m |
0.37 |
0.5 |
3.7 |
12 |
53 |
0.90
|
2840 |
2000 |
16 |
1.5 |
1.7 |
346 |
7 |
0.55 |
0.75 |
5.0 |
15 |
62 |
|
20 |
|
|
365 |
8 |
0.75 |
1 |
6.2 |
20 |
64 |
|
25 |
|
|
380 |
8 |
1.1 |
1.5 |
8.1 |
32 |
68 |
|
35 |
|
|
405 |
10 |
1.5 |
2 |
10.4 |
38 |
73 |
|
40 |
|
|
440 |
11 |
2.2 |
3 |
15.0 |
38 |
72 |
|
45 |
25 |
|
495 |
14 |
Three Phase
Power |
In (A) |
Istart (A) |
Efficiency (%) |
PF - Cos |
Nm - RPM |
Thrust Load - N |
Tail Cable |
H(mm) |
Diameter(mm) |
Weight(Kg) |
kW |
HP |
mm2 |
m |
|
0.37 |
0.5 |
1.6 |
4.5 |
60 |
0.80 |
2820 |
2000 |
1.5 |
1.7 |
330 |
94
|
7 |
0.55 |
0.75 |
1.9 |
6.7 |
64 |
2840 |
|
346 |
|
0.75 |
1 |
2.3 |
8.9 |
66 |
2840 |
|
365 |
8 |
1.1 |
1.5 |
3.1 |
12 |
70 |
2850 |
|
380 |
9 |
1.5 |
2 |
4.0 |
14 |
72 |
|
405 |
10 |
2.2 |
3 |
5.6 |
22 |
71 |
0.85 |
3000 |
2.5 |
440 |
12 |
3.0 |
4 |
7.4 |
43 |
73 |
5000 |
2.0 |
|
516 |
15 |
4.0 |
5.5 |
9.8 |
49 |
75 |
|
607 |
20 |
5.5 |
7.5 |
13.7 |
71 |
76 |
|
683 |
23 |
7.5 |
10 |
18.9 |
96 |
76 |
|
783 |
28 |
5.5 |
7.5 |
12.7 |
59.5 |
79 |
0.86 |
2837 |
15500 |
4.0 |
4.0 |
627 |
140
|
51 |
7.5 |
10 |
16.5 |
67.5 |
79 |
2826 |
|
662 |
55 |
11 |
15 |
24.2 |
60.7 |
77 |
2802 |
|
727 |
61 |
15 |
20 |
32 |
142.3 |
80 |
2837 |
|
787 |
67 |
18.5 |
25 |
40 |
101.2 |
81 |
2814 |
|
857 |
75 |
22 |
30 |
47 |
139.4 |
77 |
0.89 |
2720 |
6.0 |
|
907 |
80 |
30 |
40 |
64.1 |
320 |
83 |
0.84 |
2848 |
27500 |
8.4 |
|
1047 |
102 |
