DDG Domestic Pumps - Dayliff | Dependable Quality

Product Overview

Product Details

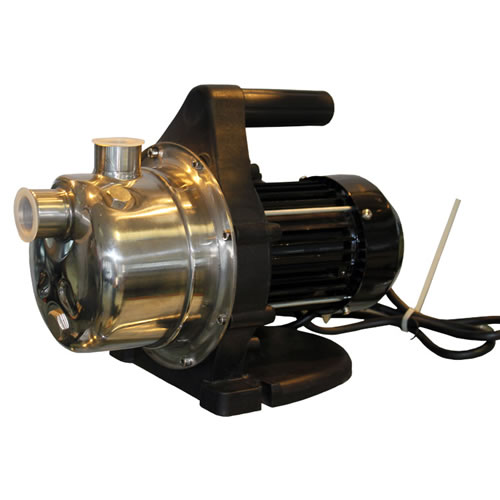

The DAYLIFF DDG pump is of single stage centrifugal impeller self priming design suitable for small scale irrigation, water boosting and water transfer applications. Materials of construction are stainless steel for the pump body, shaft and back plate with the impeller made from polypropylene. The pump is provided with a handle for easy portability and a priming screw and a drain plug.

Also available is the ‘AutoPress’ automatic booster system which incorporates a 19L horizontal diaphragm tank, pressure switch and pressure gauge for automatic pump operation.

Pumps incorporate a TEFC motor with built-in thermal overload protection. The motor can be connected to mains electrical supply through a 10A fuse or MCB, though additional protection is recommended where there is risk of voltage fluctuation.

Enclosure Class: X4
Insulation Class: B
Voltage: 1x240V
Speed: 2900rpm

Pumped Liquids: Thin, slightly aggressive liquids without solids or fibres
Max. Liquid temperature: +35°C
Max. Ambient temperature:+40°C
Max. Suction Lift: 6m at sea level
AutoPress: Cut-in Pressure - 1.5Bar, Cut-out Pressure 3Bar

Model Power Current
Dimensions (mm) Weight
DDG 1000 0.8 1 2.5 1 1 244 336 201 7
DDG 1000 Autopress 463 570 280 12



Read More Show Less

  • DDG 1000
  • DDG 1000 AutoPress
