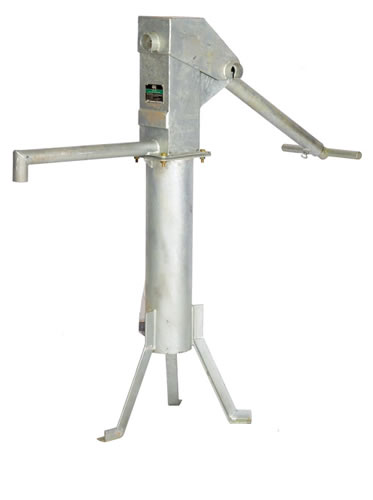

The Afridev reciprocating type hand pump has been specially designed by SKAT-HTN (Swiss Centre for Development Cooperation in Technology and Management) to meet the requirements for Village Level Operation and Maintenance (VLOM) as specified by the UNDP/World Bank. The pump has undergone extensive laboratory and field development tests and is one of only two designs which fulfils all aspects of the UNDP/World Bank specification at depths between 0 and 45m.

Features:
  • Up to 1300 litres/hour output at pumping lifts up to 45m.
  • Heavy duty design suitable for continuous operation ver long periods.
  • Rugged all galvanised steel construction for corrosion resistance and long life.
  • Simple to instal, operate and maintain at the village level.
  • Designed for ease of maintenance with basic tools and cheap, readily available spare parts.
Though the Afridev design is widely manufactured throughout the world, quality of the product itself is determined by that of the manufacturing process. The DAYLIFF Afridev is manufactured to exacting standards in a fully equipped ISO 9001:2000 certified factory with cumulative production experience of hundreds of thousands of units. The combination of this highest level of manufacturing quality, a tried and tested design and Davis & Shirtliff’s service commitment result in a rugged and dependable product ideal for all hand powered ground water pumping applications.

SPECIFICATION
Pump Head: Fabricated throughout from mild steel hot dip galvanised for corrosion protection. Long life nylon bushes are provided for the handle fulcrum and rod hanger bearing.
Pump Stand: Option of free standing or concrete encased fabricated galvanised pump stand.
Cylinder: 50mm diameter single acting PVC cylinder with brass liner, plastic plunger and plastic foot valve. Displacement per stroke is 0.44 litres.
Rising Main: 63mm O/D PVC rising main provided as standard in 3m lengths.
Pump Rods: Option of 10mm galvanized mild steel or stainless steel rods in standard lengths of 3m. Connection arrangement is by hook and eye with the option of cast or fabricated connectors.
